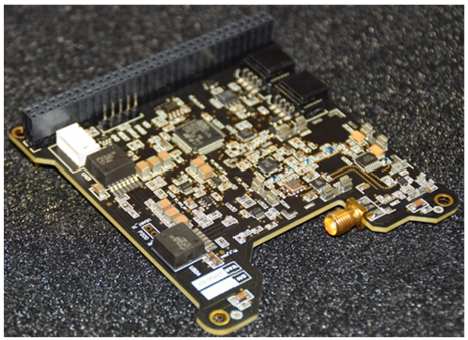

LoRa Transceiver
Product overview
If you are searching for a reliable TM/TC UHF Link that covers up to 1000 Km distances at 1 KB/s data rate, TELNET Transceiver is the solution that allies cost efficiency and satellite link robustness .
With its rich Telemetry register, discover a versatile board that can be customized to monitor every data packet circulating on the satellite and bring them to ground
Product Specification
| Parameters |
Value |
|---|---|
| PCB outer dimensions, mm |
93.6 x 86.2 x 35 |
| Input voltage, V |
5.5 - 18.0 |
| Frequency range, MHz |
863 to 870 |
| Antenna connector |
UFL connector |
| Antenna interface |
50 Ohms |
| Data interface |
CAN ; UART |
| Power consumption in RX mode, no more, W |
2.7 |
| Max Output power, dBm |
Up to +14 dBm |
| Maximum Input power, dBm |
0dBm continuous |
| Sensitivity at BER ≤10 -4, no more, dBm |
Up to -138 dBm |
| Operational temperature range, °C |
-40°C to +80°C |
| Maximum shock, g |
50 g |
